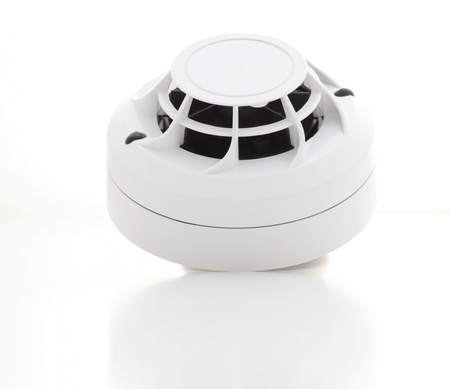

Digital 78°C Thermal Detector with Isolator MIHTSES2I

MI-HTSE-S2I - Digital 78°C Thermal Detector with Isolator - Pure White - Morley-IAS

The MI-FHSE-S2 is fixed temperature intelligent sensors employing low mass thermistors and microprocessor technology for fast response and linear temperature sensing. Their linear response allows these sensors to be used to signal temperatures over the range of 58°C (class A1S) to 78°C (class BS).

Also available:
MI-HTSE-S2I-IV - Digital 78°C Thermal Detector with Isolator - Ivory
MI-HTSE-S2 - Digital 78°C Thermal Detector - Pure white
MI-HTSE-S2-IV - Digital 78°C Thermal Detector - Ivory
BCK-200REAP - Black detector cover for Thermal MI200-S2 detector

FEATURES & BENEFITS

- New mechanical platform with revolutionary chamber
- Includes advanced protocol
- Available with standard short circuit isolator with status control using the advanced protocol
- Tri colour LED offering red, green and amber colour
- Rotary decade address switches 0-159
- Pure white colour to complement modern buildings
- 100% mechanical and electrical backwards compatibility
- New base design to complement the detector
- Certified Bosec, LPCB and Vds following EN54

TECHNICAL SPECIFICATIONS

• Weight : 88g (without base)
• Dimensions : 102 mm x 61 mm in base B501AP
• Approved to EN54-5 Class BS, EN54-17
• CPD number : 0786-CPD-20741
