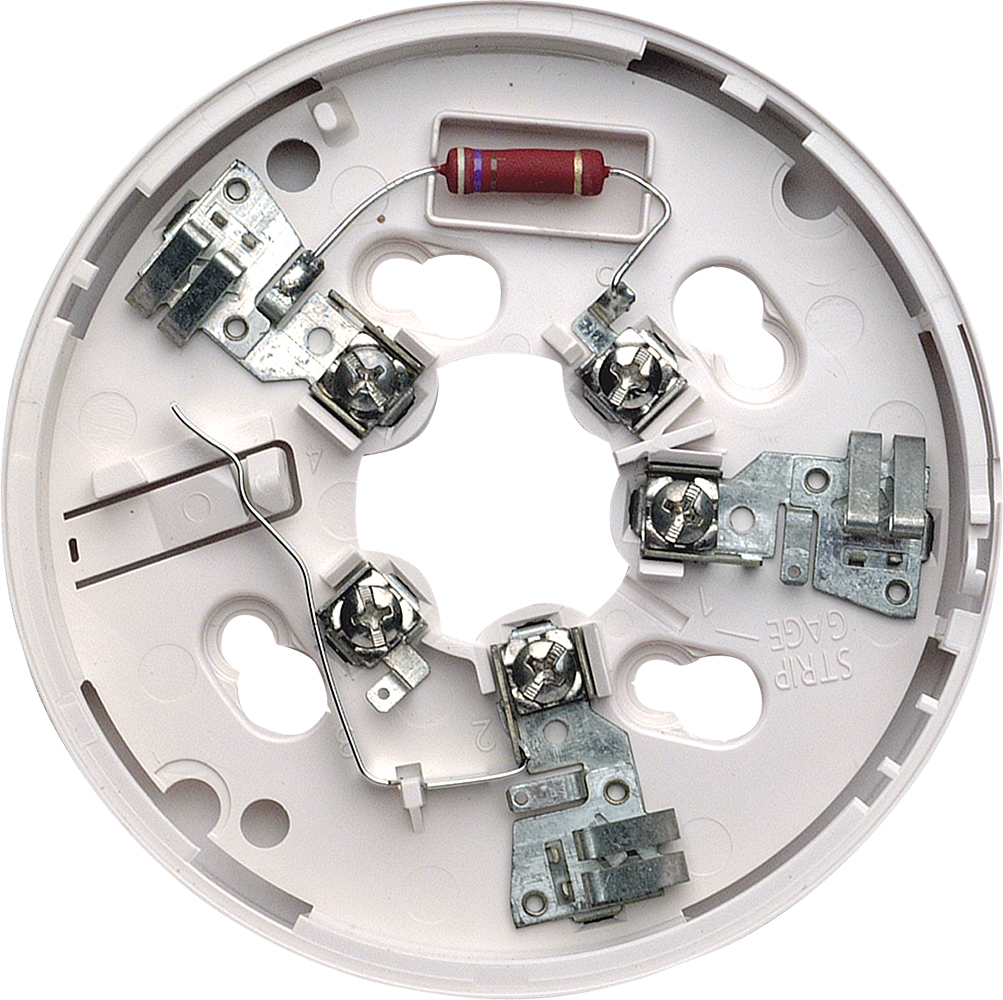

B401 - Plug-In Detector Base with 470R Current Limited Resistor for SYSTEM SENSOR Conventional Detectors

This B401 plug-in detector base is used with System Sensor smoke and heat detector heads. The capability of plugging these detectors into a variety of special bases makes them more versatile than equivalent direct-wired models. Refer to the System Sensor catalog for other available plug-in detector bases.
The B401 base is intended for use in 2-wire systems, with screw terminals provided for power and remote annunciator connections.

For use with the following detectors:
US Models: 1151, 1451, 2151, 2451, 2451TH, 5451
European Models: 1151E, 1451E, 2151E, 2451E, 5451E
Australian Models: 1151AUS, 1451AUS, 2151AUS, 2451AUS, 4451AUS, 5451AUS, 51A51, 51B51, 51C51, 51D51

TECHNICAL SPECIFICATIONS

• Base Diameter: 10.2 cm
• Base Height: 2.0 cm
• Weight: 152 g
• Current limited resistor : 470 R
• Mounting: 50 mm box, 60 mm box
• Operating Temperature Range: –10° to +60°C — European Installation. 0° to 49°C — US/Australian Installation
• Operating Humidity Range: 10% to 93% Relative Humidity
