Detector Calibration Kit Talentum 1800-012

Talentum-1800-012 - Detector Calibration Kit for Test Torch - FFE

The TalentumTT2 calibration kit enables in-situ adjustment of installed Talentum® Flame Detectors, bringing them back to factory fresh performance, extending their service life.

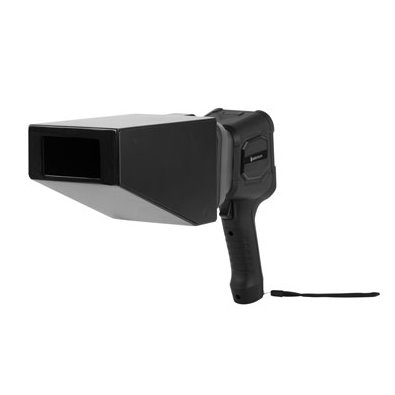

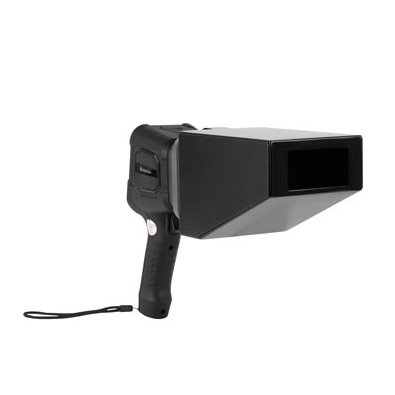

The kit comprises an infra-red excluding Shroud, needed to eliminate potential interference from external warm bodies, and an interface cable to attach to a Talentum® service port.
Simply hook the Shroud onto the front of the TalentumTT2, and connect the interface cable to the front of the Talentum® Flame Detector to recalibrate. Then, select the Recalibrate Talentum option from the TalentumTT2 main menu, and follow the on screen prompts.
Recalibration takes around one minute and is fully automated using the TalentumTT2 's on-board microprocessor which calculates the optimum settings.
