Talentum-16519-00 - Triple IR flame detector in Eexd - IIC T6 flame proof housing - FFE

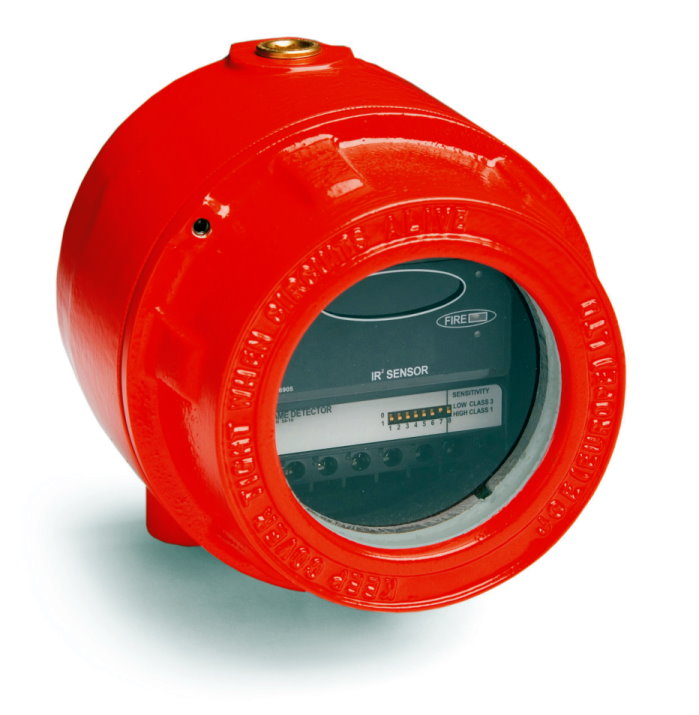

The Talentum flameproof triple Infra-Red IR3 Flame Detector is designed to protect hazardous areas where open fires may be expected and detects almost all flames, including hydrocarbon fires with 4.3 m emissions through to invisible fires such as hydrogen.
The IR Flame Detector is sensitive to flickering, low frequency (1-15Hz) infra-red radiation emitted by flames during combustion even if the lens is contaminated by a layer of oil, dust, water, vapour or ice.
This detector has three IR sensors which respond to different IR wavelengths in order to discriminate between flames and spurious sources of radiation. False alarms from flickering sunlight are avoided by a combination of filters and signal processing techniques.
The IR detector has selectable output options of relay contacts or 4-20mA signal, as standard

Approved  to EN54-10
Warranty detector : 3 Years

FEATURES & BENEFITS

• Excellent immunity to false sources
• Tolerant of fumes, vapours, dust and mist
• Suitable for indoor and outdoor areas
• Unaffected by convection currents, draughts or wind
• Proven response to multiple fuel types
• Multi-spectrum detection
• Selectable output options
• Selectable response speed
• Selectable sensitivity levels
• Built in auto and manual test
• Low current consumption
• Fast response to fire

APPLICATIONS

• Chemical Plants
• Waste Recycling
• Nuclear Power Sites
• Engine Rooms
• Spray Booths
• Pharmaceutical Production
• Military Applications
• Marine Industry
• Printing
• Refineries
• Fuel loading racks
• Storage tanks
• Aircraft hangers
• Petrochemical onshore/offshore
• Biomass storage and handling
• LNG/LPG production
• Coal Handling


Other Reference : FF766N
